L-series centrifugal fan

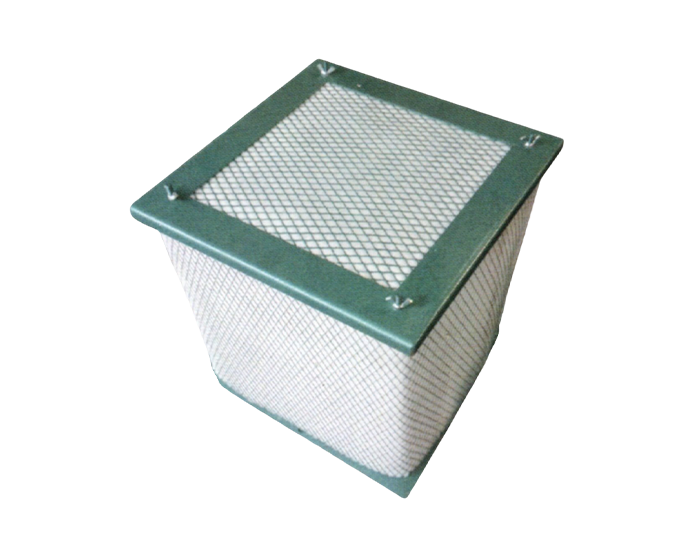

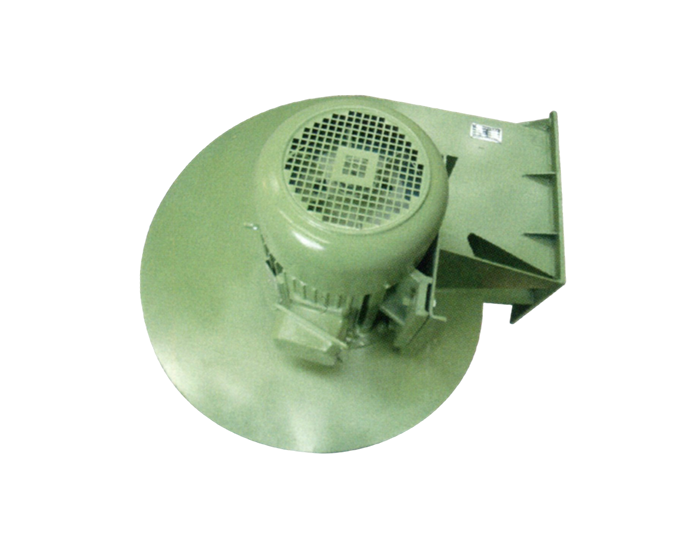

The L-series centrifugal fan consists of two parts: an air filter and a ventilation fan. There are two forms of fan casings, among which L-03~L-064 use aluminum alloy integral casting casings, and L-065~L-13 use steel plate welded structural casings. The overall appearance of the fan is beautiful, with a compact structure and convenient disassembly and maintenance. The L-series centrifugal fan is mainly used for forced air cooling of Z-series DC motors, and can also be made into a backpack fan for forced cooling and ventilation of lifting motors or special motors, or for heat dissipation in other places and equipment. The filter adopts non-woven fabric filtration, which is easy to replace and ensures the delivery of clean air.

L-Series Centrifugal Fan Appearance And Installation Dimensions

Model a b C d e f g h M N O P K L φ1 n×φ
L-03 一 80 88 130 60 60 一 110 200 205 107 120 345 150 4×φ7
L-04 一 80 112 130 70 60 一 110 200 205 107 85 120 345 150 4×φ7
L-05 一 80 112 130 70 68 一 110 230 232 125 98 182 480 180 4×φ7
L-06 一 140 172 190 80 88 一 120 280 295 150 115 222 578 260 4×φ7
L-064 一 150 200 230 132 110 一 150 345 390 168 150 322 693 320 4×φ9
L-065 180 180 240 270 100 140 180 210 405 458 190 181 / 452 φ/ 8×φ10
L-07 / 180 245 270 / 140 185 210 405 458 190 181 / 477 φ/ 6×φ10
L-08 200 210 245 290 110 170 215 240 428 496 195 195 630 1187 φ430 1 0 × φ 1 0
L-09 210 210 300 324 120 170 235 260 447 519 202 202 630 1237 φ430 1 0 × φ 1 0
L-10 105 280 310 345 一 170 235 270 520 590 240 240 一 一 一 1 0 × φ 1 0
L-11 310 270 310 354 100 160 215 240 480 510 235 200 一 一 一 10×φ12
L-12 一 380 415 444 130 235 一 300 820 820 一 一 350 一 一 4 × φ 1 5
L-13 200 430 480 520 200 260 310 340 861 851 一 一 415 一 一 8×φ15

Main Performance Parameters Of L-Series Centrifugal Fans

Model Flow M³/h Total Pressure Pa Static Pressure Pa Speed(r/min) Noise dB(A) Power(KW) Model
L-03 160 250 200 2800 60 0.04 A02-5012
L-04 220 350 300 2800 62 0.06 A02-5012
L-05 360 550 450 2800 68 0.18 A02-5622
L-06 790 750 600 2800 73 0.37 A02-6322
L-064 1600 1250 950 2800 78 1.1 Y802-2
L-065 2000 1300 980 2800 83 1.5 Y90S-2
L-07 2300 1350 1000 2800 83 2.2 Y90L-2
L-08 3000 1700 1200 2800 85 3 Y100L-2
L-09 4000 1950 1420 2800 87 4 Y112L-2
L-10 5200 2150 1800 2800 88 5.5 Y132S-2
L-11 6000 2500 2050 2800 91 5.5 Y132S-2
L-12 7200 2050 1760 2800 92 5.5 Y132S-2
L-13 7200 2450 2150 2800 93 7.5 Y132M-2
